At its heart, a cable pulling winch is a specialised machine built for one crucial job: installing heavy electrical and fibre optic cables through ducts, pipes, or trenches. They supply the steady, controlled power needed to pull these cables over long distances safely and without damage.

What Are Cable Pulling Winches and Why Are They So Important?

Picture this: you need to thread a very thick, heavy rope through a narrow underground pipe that runs for a whole kilometre. Trying to do that by hand? It’s simply not going to happen. This is exactly the kind of problem cable pulling winches were designed to solve, making them the unsung heroes of our modern infrastructure.

A good way to think of a winch is like an industrial-strength fishing reel. But instead of landing a big fish, its purpose is to carefully pull essential power and data cables into their final position. We’re not talking about just any old wires; these are the arteries and nerves of our connected world, powering everything from new housing developments to the UK’s growing fibre optic internet backbone.

What a Winch Actually Does

The main job of these machines is to apply force that is smooth, consistent, and completely controlled. Trying to pull a delicate fibre optic cable with jerky, uneven force is a surefire way to cause a lot of expensive trouble. The tiny glass fibres inside can snap in an instant, leading to frustrating delays and costly repairs.

A proper winch makes sure the tension stays perfectly steady from the start of the pull to the very end. This precision stops the cable from stretching, getting scraped, or breaking. It protects the cable’s integrity so it can do its job reliably for decades. This is especially vital in busy towns and cities where underground services are already crammed together.

A winch does more than just pull; it guides. It ensures that expensive, critical cables are installed with the care and precision required to power our communities safely and reliably. Without them, building the infrastructure for high-speed internet and stable electricity would be a much slower and riskier business.

Powering UK Infrastructure Growth

You can track the UK’s progress by looking at the demand for these machines. With the nation investing heavily in infrastructure upgrades and renewable energy projects, the need for efficient installation tools has never been greater. This trend is clearly reflected in the market itself.

The global market for underground cable pulling winches was valued at around USD 337 million and is expected to climb to USD 448 million by 2033. This growth shows just how much we rely on these machines for urban development and expanding our energy grids. You can dig deeper into what these market trends mean for UK construction through detailed industry analysis reports.

How a Cable Pulling Winch Actually Works

To really get your head around why these winches are so essential, it helps to peek under the bonnet and see what makes them tick. They might look complicated, but the way they work is actually based on a pretty straightforward principle: applying controlled force. It all comes down to three key parts working together seamlessly.

Picture trying to reel in a massive, delicate kite in a strong breeze. You wouldn’t just yank it in haphazardly. Instead, you’d apply steady, firm pressure to guide it down safely. A winch does exactly that for expensive cables, protecting them from the incredible stress of being pulled through long, tight conduits. It’s all about precision, not just brute strength.

The Key Components in Action

The real heart of most cable pulling winches is the capstan drum. This isn’t your average storage drum that just spools up rope. The capstan is what provides the actual pulling force. The rope wraps around it a few times, and as it turns, the friction creates a smooth, non-slip grip that pulls the cable with amazing consistency. This is what stops the jerky, sudden movements that could easily damage fragile fibre optic lines or stretch high-voltage power cables.

Of course, something has to power all this. That’s where the engine or motor comes in. On a rugged, off-grid site, you’ll likely find one with a petrol engine. For jobs in quieter residential areas, an electric motor is the way to go. This power source is what turns the capstan drum, giving it the torque needed to handle pulls weighing several tonnes.

Finally, you have the control system – the brains of the whole operation. Modern winches have sophisticated controls that let the operator set and monitor the pulling tension in real-time. If the force suddenly goes over a pre-set safe limit, say because the cable has snagged on something inside the duct, the system can automatically stop the pull. This prevents a very costly break. It’s this idea of controlled tension that separates a professional winch from any old pulling device.

The magic isn’t just in the pulling; it’s in the constant, controlled tension. A capstan winch doesn’t store the rope on the pulling drum, allowing it to maintain the exact same force from the first metre to the last, protecting the cable throughout its journey.

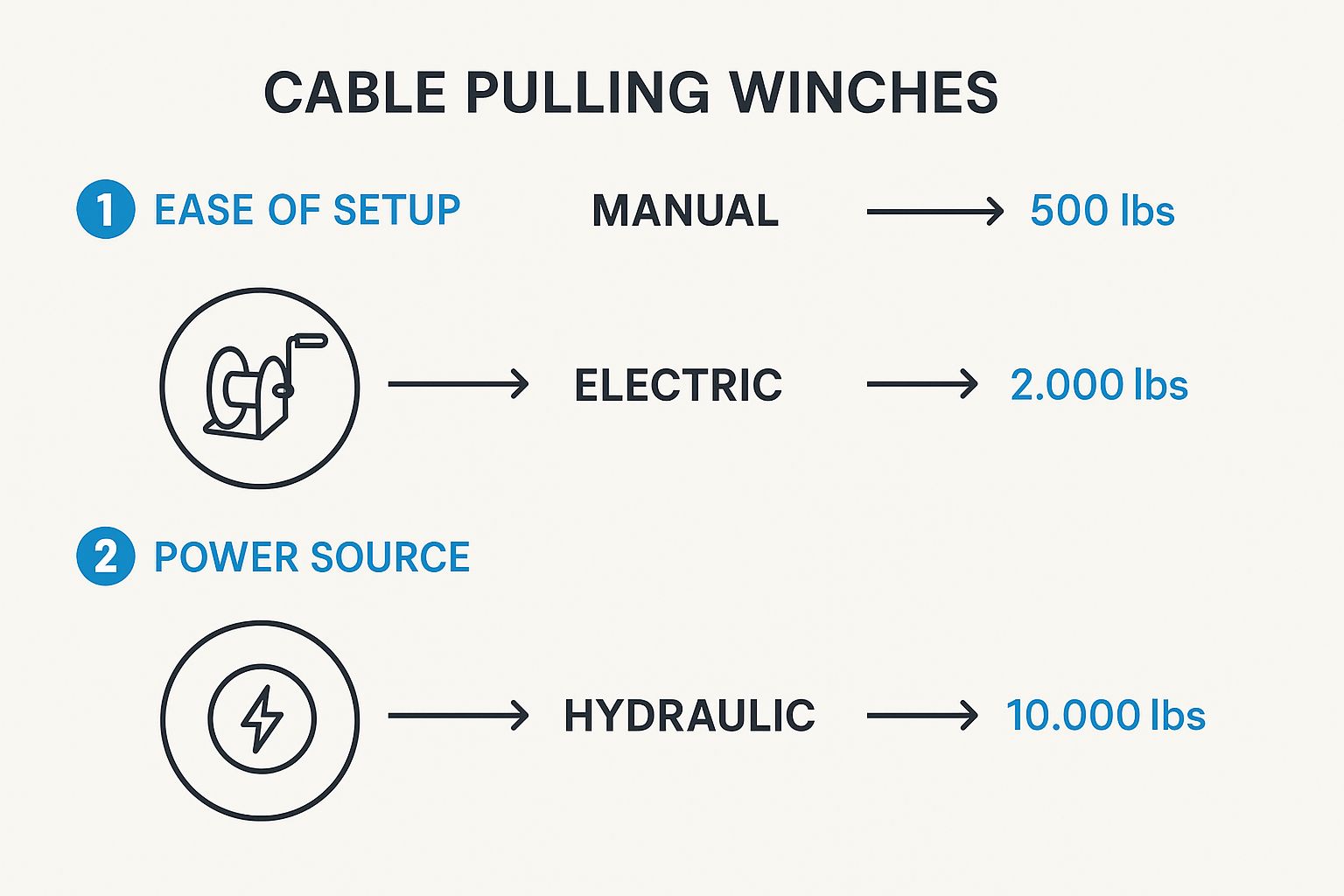

The image below gives you a good idea of how different winch types are matched to different jobs, depending on the power source and the weight they need to pull.

As you can see, the right winch depends entirely on the scale of your project, from small manual pulls right up to heavy-duty hydraulic jobs. It’s important to remember that winches are for pulling, not lifting. For vertical jobs, you’ll need different gear altogether. You can learn more about the distinction when looking at hiring hoists for lifting and handling materials, which are designed specifically for that purpose.

Exploring the Main Types of Cable Pulling Winches

Not all cable pulling winches are created equal, and choosing the right one is absolutely critical for your project’s safety and efficiency. Think of it like picking a vehicle; you wouldn’t use a small hatchback to haul a tonne of bricks. In the same way, each winch is built for a specific job and environment, striking its own unique balance between power, portability, and how it operates.

Getting to grips with these differences is the key to matching the machine to the job. The main distinction between them comes down to the power source. Generally, you’ll find they fall into three main categories: hydraulic, electric, and engine-driven (petrol or diesel) models. Each has its own pros and cons, making them better suited for different scenarios you’ll find on sites across the UK.

Hydraulic Winches: The Powerhouses

When you’re faced with a monumental task that needs raw, uncompromising power, hydraulic cable pulling winches are the undisputed champions. These machines are built to handle extreme pulling forces, making them essential for laying huge, high-voltage power cables or managing incredibly long pulls over difficult ground.

Hydraulic winches get their immense strength from pressurised fluid, which delivers a smooth, consistent pulling force that won’t flinch under massive loads. But all that power comes with a trade-off. They’re typically larger, heavier, and need a separate hydraulic power pack to run, so they aren’t the easiest to move around. This makes them perfect for large-scale, industrial projects where you have good access and sheer force is the top priority.

Electric Winches: The Quiet Achievers

For any job in a residential area, inside a building, or anywhere with tight rules on noise and emissions, an electric winch is your best bet. They run cleanly and quietly, powered either by a mains connection or a portable generator. This makes them ideal for installing fibre optic cables in busy city centres or working on internal infrastructure within occupied commercial buildings.

While they don’t typically pack the same punch as their hydraulic cousins, modern electric models offer more than enough muscle for most common fibre and electrical cable installations. Their main advantages are clear:

• Low Noise: Perfect for working in built-up areas or noise-sensitive environments without causing a disturbance.
• Zero Emissions: A must-have for indoor work or on sites with strict environmental standards.
• Ease of Use: They are often lighter, more compact, and generally simpler to set up and operate.

Petrol and Diesel Winches: The Versatile Workhorses

So, what do you do when you need serious pulling power on a remote site with no electricity in sight? This is where petrol and diesel-powered cable pulling winches really come into their own. They offer a self-contained, powerful solution that gives you incredible flexibility for all sorts of jobs.

A diesel winch combines robust power with true go-anywhere portability, making it the backbone of many utility and infrastructure projects far from a convenient power source. It strikes a balance between the raw strength of a hydraulic system and the operational freedom required for remote work.

These engine-driven models are beefy enough for most utility-scale jobs but are still more portable than the big hydraulic systems. Of course, they produce exhaust fumes and are much noisier than electric versions—which rules them out for many indoor or urban projects—but their all-round capability makes them a hugely popular choice for contractors working across varied site conditions.

Choosing the right winch really boils down to understanding the specific demands of your site and the cable you’re installing. To make it a bit clearer, let’s compare the main features of each type side-by-side.

Comparison of Cable Pulling Winch Types

As you can see, there’s a clear trade-off between power, portability, and environmental impact. The best choice is always the one that fits the unique puzzle of your project’s requirements.

Key Features of a Modern Cable Winch

If you think of a cable winch as just a simple machine for pulling, it’s time to look again. Today’s cable pulling winches are a world away from the basic models of the past. They’re smart, sophisticated pieces of kit packed with features designed to make jobs safer, faster, and far more precise.

The days of just yanking a cable and hoping for the best are long gone. Modern winches are built with intelligent systems that protect the operator, the winch itself, and the very expensive cable being installed. These upgrades aren’t just for show; they’re essential for meeting the UK’s strict health and safety standards and avoiding the kind of damage that can bring a project to a grinding halt.

Intelligent Controls and Safety Systems

The biggest leap forward has been the addition of smart technology. It’s now common to find UK-spec cable winches with features like wireless remote controls, constant load monitoring, and tidy automatic spooling. These systems are a direct response to the need for safer work sites, helping to cut down on accidents in construction and utility jobs. You can learn more about the industry trends driving this adoption in the latest market reports.

You’ll find several key safety features built into any high-quality hire winch today:

• Automatic Overload Protection: Think of this as a safety cut-out for pulling force. If the tension on the cable suddenly spikes past a safe, pre-set limit, the winch automatically stops. This single feature prevents countless instances of cable snapping and equipment damage.
• Emergency Stops: Bright red and easy to reach, E-stops allow anyone to shut down the pull instantly if they spot a problem.
• Wireless Remote Controls: This is a game-changer. It lets the operator stand well clear of the winch and the cable’s path, giving them a much better view of the entire operation. It dramatically lowers the risk of injury from a snapped rope or equipment malfunction.

Data Logging for Quality Assurance

For big infrastructure projects, you often have to prove the cable was installed correctly. This is where data logging comes in. Many modern winches can record every single detail of a pull, from start to finish.

A data logger is like the winch’s “black box.” It creates a permanent, undeniable record of the tension applied to the cable throughout the entire installation. This data can then be downloaded and handed over to the client as proof of a job well done.

This isn’t just a nice-to-have; it’s a powerful tool for quality assurance. It gives clients complete peace of mind and protects your business from any future claims that a cable was installed improperly.

These advanced features ensure your operations are not just safer, but also more effective. Of course, safety and efficiency are just as important when working at height, which is why having the right access solution is vital. For more on this, have a look at our guide on scaffold tower hire to make sure your site is properly kitted out.

Choosing the Right Winch for Your Project

Picking the right cable pulling winch is one of the most critical decisions you’ll make on a job. Get it wrong, and you’re not just looking at inefficiency; you’re facing potential cost blowouts and serious safety risks. A winch that’s too weak will simply fail, but one that’s massively overpowered is just a waste of money.

The best way to sidestep these issues is to work through a simple checklist. This approach breaks down a complex technical choice into a series of straightforward questions about your project, letting you hire or buy with confidence.

The goal is to match the machine to the mission precisely. Think of it like choosing an engine for a vehicle; you need enough power to handle the load and the terrain without putting unnecessary strain on the equipment or your budget.

Calculating Your Pulling Force

Before you even start browsing winch models, you need to get a handle on the forces at play. This is the single most important calculation you’ll make. It’s not just about the cable’s dead weight; it’s about conquering friction every single metre of the pull.

To figure out the required pulling force, you need to weigh up a few key factors:

• Cable Weight: The total weight of the cable, usually given in kilograms per metre.
• Pull Length: The entire distance the cable has to travel, whether through a duct or down a trench.
• Duct Friction: The resistance from the cable dragging against the inside of the duct. This varies hugely depending on the duct material (like smooth PVC versus rougher steel) and whether you’re using lubricant.
• Bends and Inclines: Every bend, corner, or change in elevation adds a surprising amount of tension and must be included in your sums.

Once you have these figures, you can plug them into a standard pulling force formula or use a dedicated online calculator. As a rule of thumb, always add a healthy safety margin of at least 25% to your final number. This will cover any unexpected snags or variations you might hit along the pull.

Assessing Your Site and Environment

Beyond pure pulling power, the worksite itself will narrow down your options. You need to ask some practical questions about the location. Is access tight, making a large hydraulic unit impossible to get into position? Are you working in a quiet residential street where the noise from a diesel engine is going to cause a headache?

These on-site limitations are just as important as the pulling force calculation. For a major infrastructure project with wide-open access, a big diesel or hydraulic winch might be perfect. But if you’re pulling fibre optic cables inside an office building, a compact and quiet electric winch is really the only logical choice.

Across the UK, the demand for this kind of specialised gear is on the rise, thanks to major investments in our infrastructure. In fact, market analysis projects the global underground cable pulling winch market will grow substantially, from USD 150 million to USD 250 million by 2033. This growth is heavily influenced by the UK’s push to modernise its electrical grid and expand fibre networks. You can read more about the global market for cable pulling winches in recent industry reports.

Essential Safety Procedures for Winch Operations

When you’re dealing with machinery as powerful as a cable pulling winch, safety isn’t just a box-ticking exercise. It’s the absolute foundation of every single job. A successful pull is a safe pull, period. The forces involved here are enormous, and if you don’t respect them, you’re risking serious injury or catastrophic equipment failure.

Every operation, without exception, must start with a thorough pre-use check. Go over the winch itself, looking for any wear, damage, or fluid leaks. Just as importantly, inspect the entire length of the pulling rope. You’re searching for any frays, kinks, or broken strands. A rope under extreme tension is a loaded spring; if it snaps, the consequences can be devastating.

Anchoring and Setting Up Exclusion Zones

Once the winch gets the all-clear, your next focus is the anchor point. This is critical. The winch must be anchored to something solid enough to handle at least twice the maximum force you plan to pull with. If the anchor point fails, the whole winch can become a dangerous projectile.

Just as crucial is setting up and enforcing clear exclusion zones. No one gets in, no exceptions.

• Operator Zone: Only trained operators should ever be near the winch controls.
• Pulling Path Zone: Nobody should ever stand in the direct line of the pull or anywhere near the cable. Keep the entire area around the rope clear at all times.
• Tension Zone: This is the high-risk area around the anchor points and any pulleys or snatch blocks. During a pull, this area is strictly off-limits.

A winch’s rated load is its absolute maximum limit, not a target. Pushing past this capacity puts every single component under incredible strain, massively increasing the risk of mechanical failure and creating a serious hazard for everyone on site.

Clear Communication and Personal Protective Equipment (PPE)

Finally, clear communication is the glue that holds a safe operation together. The whole crew needs to be on the same page, using established hand signals or radios to communicate start, stop, and emergency commands.

Every person involved must also be wearing the correct Personal Protective Equipment (PPE). That means hard hats, steel-toed boots, eye protection, and heavy-duty gloves are non-negotiable. These simple steps are what separates a professional, safe worksite from a dangerous one.

Frequently Asked Questions

Even with the best guides, you’re bound to have a few specific questions when you’re on the job. We get it. Here are some quick, straightforward answers to the questions we hear most often about cable pulling winches.

Getting these details right is crucial for keeping your project safe and on schedule. For more general hire questions, you can always check out our main Frequently Asked Questions page.

Can I Use a Vehicle Recovery Winch for Pulling Cable?

Absolutely not. We strongly advise against this, as it’s incredibly unsafe. A vehicle recovery winch is built for brute force—short, powerful bursts to get a vehicle unstuck. It has none of the fine-tuned speed or tension control that cable installation demands.

If you try to use one, you risk stretching or snapping the cable, which can cost thousands to replace and puts your crew in serious danger. You must always use a winch that was specifically designed for pulling cable.

How Do You Calculate the Required Pulling Force?

Figuring out the right pulling force is key to choosing the right winch. It’s not just a guess; the calculation depends on several factors: the cable’s weight per metre, how long the pull is, and the coefficient of friction of the duct you’re pulling through. You also have to consider any bends or slopes along the route.

A good starting point is the formula: Tension = Cable Weight x Pull Length x Friction Coefficient. But for real-world jobs, it’s always best practice to use a proper pulling calculator and add a healthy safety margin to account for anything unexpected.

What Is the Difference Between a Capstan and a Drum Winch?

This is a really important distinction. A drum winch winds the pulling rope directly onto its drum. As more rope coils onto it, the drum’s effective diameter gets bigger, which can cause the pulling force to drop off slightly as the pull progresses.

A capstan winch, however, works differently. It uses friction over its capstan wheels to do the pulling, while a separate, low-tension reel simply stores the rope. This clever design means capstan winches provide a completely constant and steady pulling force from start to finish, making them the better choice for long or delicate cable installations.
