How to Make a Shed Base Concrete: UK Step-by-Step Guide

Building a concrete shed base is a proper job. It involves digging out the site, putting down a solid sub-base of hardcore, building a wooden frame to hold the concrete, and finally, pouring the slab itself. Do it right, and you’ll have a rock-solid, perfectly level foundation that keeps your shed safe from damp and structural strain for years to come. It’s one of those projects where the effort definitely pays off.

Why a Concrete Shed Base Is Worth the Effort

Before you even think about picking up a shovel, it’s worth understanding why learning how to make a shed base concrete is such a good investment for your new garden building. At the end of the day, a shed is only as good as what it’s sitting on. Flimsy alternatives like a few paving slabs or timber bearers often give up the ghost over time, especially with our unpredictable UK weather.

Protecting Your Shed from the Ground Up

The biggest enemy of any wooden shed is moisture creeping up from the ground. A properly poured concrete slab creates an impenetrable barrier, stopping the damp that causes rot, mould, and attracts unwanted insects to your shed’s floor and walls. It’s a level of structural integrity that other, less permanent bases just can’t match.

Think about the common headaches that come with a poorly supported shed:

• Warped Doors: When a base isn’t level, the whole shed frame twists. The first thing you’ll notice is the door jamming or refusing to shut properly.
• Sinking Corners: Paving slabs have a nasty habit of shifting and sinking into soft ground, leaving you with an unstable, slanted floor.
• Water Pooling: Without a solid base to lift it slightly off the ground, rainwater will collect around the bottom of the shed, speeding up decay.

A well-built concrete base isn’t just a platform; it’s a permanent solution. It guarantees your shed stays level, dry, and structurally sound for its entire lifespan, turning a simple garden feature into a lasting asset for your property.

Built for the British Weather

The way we build a concrete shed base in the UK is shaped by our unique climate and ground conditions. The constant rain and the freeze-thaw cycles in winter cause the ground to shift, which can easily wreck weaker foundations. A concrete base, sitting on a well-compacted sub-base of MOT Type 1, is specifically designed to resist all that movement and prevent cracking.

If you want to get into the nitty-gritty of material specs, you can find more insights on concrete for shed bases in the UK.

Getting Started: How to Prepare and Mark Out Your Shed Base

Alright, with the planning out of the way, it’s time to get your hands dirty. This first stage—the prep work—is where a solid shed base is truly made. Everything that follows depends on getting this right, so don’t be tempted to rush it. Your first task is to mark out precisely where your new shed will live.

A common rookie mistake is making the base the exact same size as the shed. You’ll want to give yourself a bit of breathing room. A good rule of thumb for most garden sheds is to make the base 300mm to 400mm wider and longer than the shed itself. This extra concrete apron makes it far easier to position the shed later and helps stop rain from splashing back against the timber.

Measuring Up and Squaring the Corners

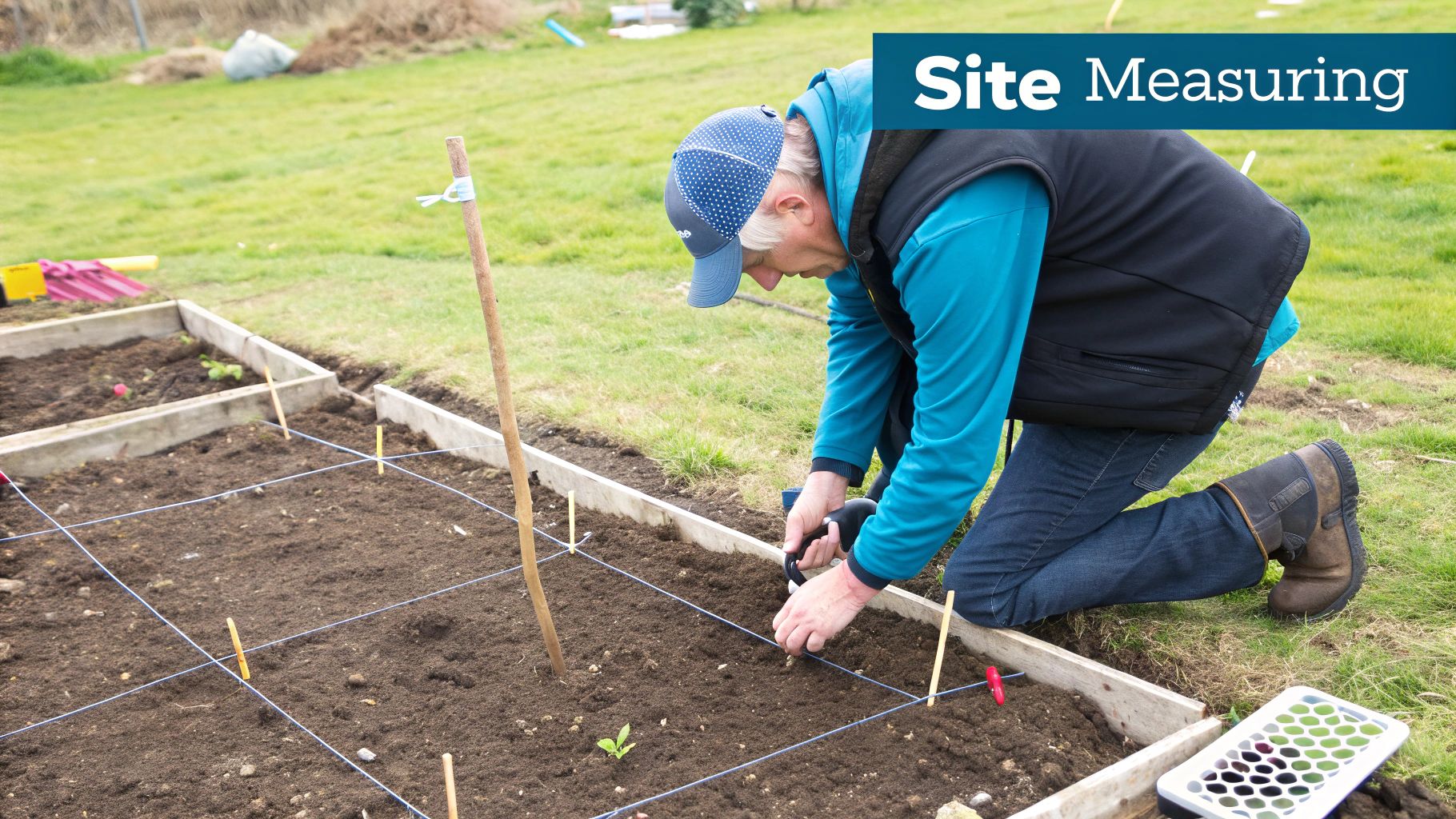

Once you’ve settled on the final dimensions, grab some wooden pegs and builder’s string to mark out the perimeter. This isn’t just about getting the length and width right; it’s absolutely crucial that your corners are perfect 90-degree angles. A wonky base means a wonky shed, and that’s a headache you don’t need.

To get it spot on, use the 3-4-5 triangle method. It’s an old builder’s trick that has never let me down.

• From one corner peg, measure 3 metres along one of the string lines and make a mark.
• From that same corner, measure 4 metres along the other string line.
• Now, measure the diagonal distance between those two marks. It should be exactly 5 metres.

If it’s not, just tweak the position of your string lines until it is. Once you’ve done this for all four corners, you can be confident you’ve got a perfectly square area to work with.

Digging Out and Laying the Sub-Base

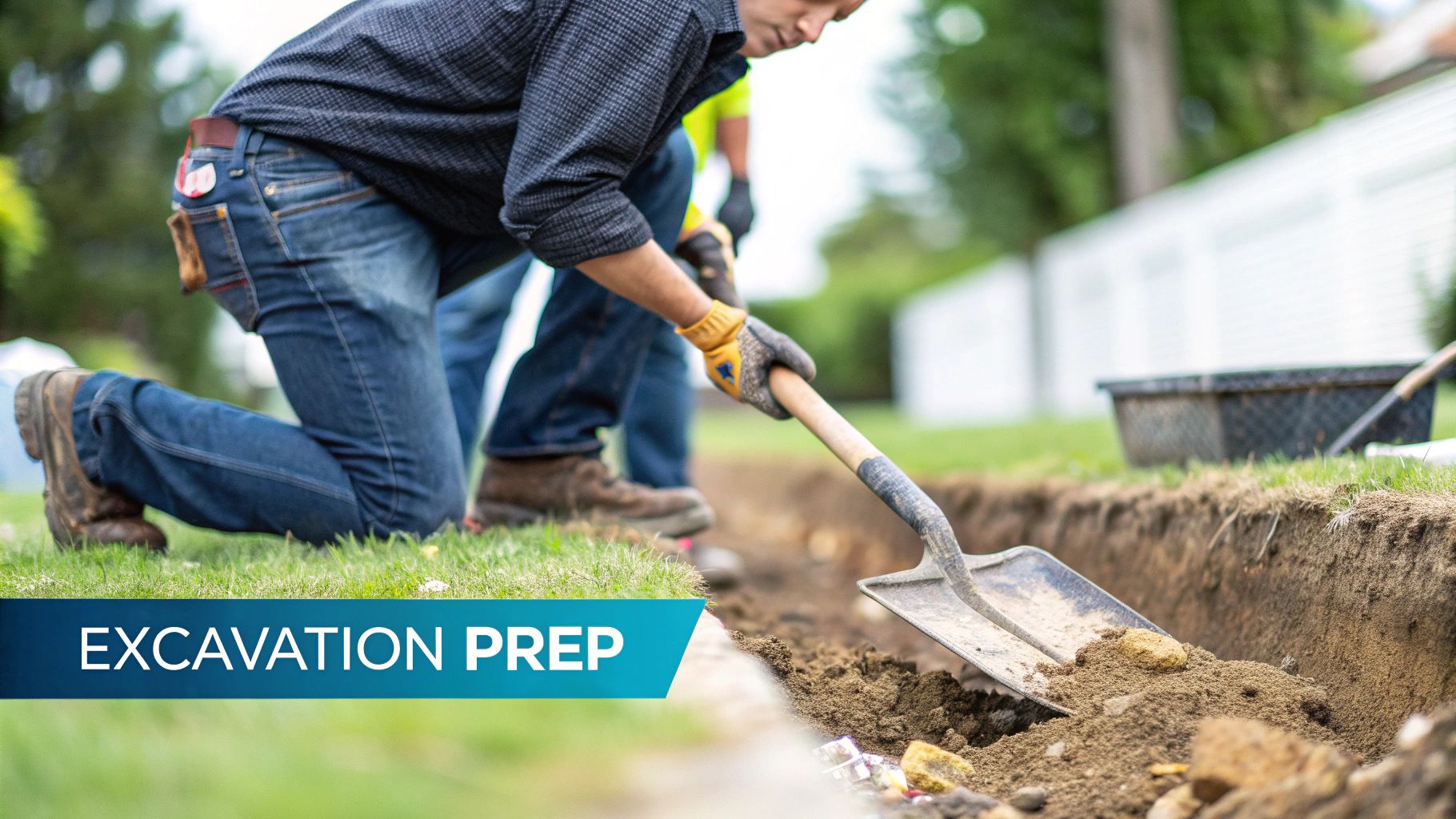

With your perimeter neatly marked out, it’s time to pick up the spade. You’ll need to clear away all the turf, topsoil, and any roots within your string lines. The goal is to dig deep enough to accommodate a solid sub-base and the concrete itself.

For a durable, long-lasting shed base, you’re looking at a 75mm layer of compacted hardcore (MOT Type 1 is the stuff you want) topped with 75mm of concrete. That means you need to dig down to a total depth of about 150mm (or 6 inches). This combination is what gives your base its strength and stops it from sinking or shifting over the years. You can find more detail on these UK shed base requirements and best practices.

Pro Tip: Before you stick a spade in the ground, check for hidden services. Hire a Cable Avoidance Tool (CAT scanner) and give the area a quick scan for buried electric cables or water pipes. Hitting one of those can be dangerous and costly.

Once the area is excavated, bring in your MOT Type 1 hardcore and spread it out evenly to a depth of 75mm. The next step is vital: compacting it. Hire a wacker plate for the day and go over the entire area until it’s rock solid and completely level. A loose sub-base is a recipe for disaster, as it will cause the concrete on top to crack. Get it right, and you’ll have a perfect foundation ready for the formwork.

Building the Formwork and Mixing the Concrete

With your sub-base perfectly compacted and level, it’s time to build the container that will shape your slab. This temporary mould, often called formwork or shuttering, is where precision really counts. It’s the key to giving your base its final dimensions and those crisp, straight edges.

For this job, you’ll need some timber planks. Gravel boards are a great, affordable option. Cut them to the exact length and width of your planned base, then piece them together to create a sturdy frame right on top of your prepared hardcore.

Assembling a Strong and Square Frame

The absolute golden rule here is to get the frame completely square and level before you even think about mixing any concrete. Get your spirit level out and check the top of all four sides, gently tapping the timber down into the sub-base until it’s spot on. How level your formwork is now directly dictates how level your final concrete surface will be.

To hold it all together, screw a block of wood into the outside of each corner where two planks meet. Then, hammer wooden pegs into the ground every metre or so along the outside of the frame and screw them firmly to the timber. This reinforcement is vital—it stops the formwork from bowing outwards under the massive weight and pressure of wet concrete.

Remember, the top edge of your formwork is your guide for levelling the concrete later. A bit of extra time getting it perfect now will save you a world of pain during the pour.

Getting the Concrete Mix Just Right

Now for the main event: mixing the concrete. The strength and long-term durability of your shed base come down to getting the right ratio of ingredients. You’re aiming for a strong, workable mix that’s not too wet and sloppy, but also not so dry that it’s crumbly and unmanageable.

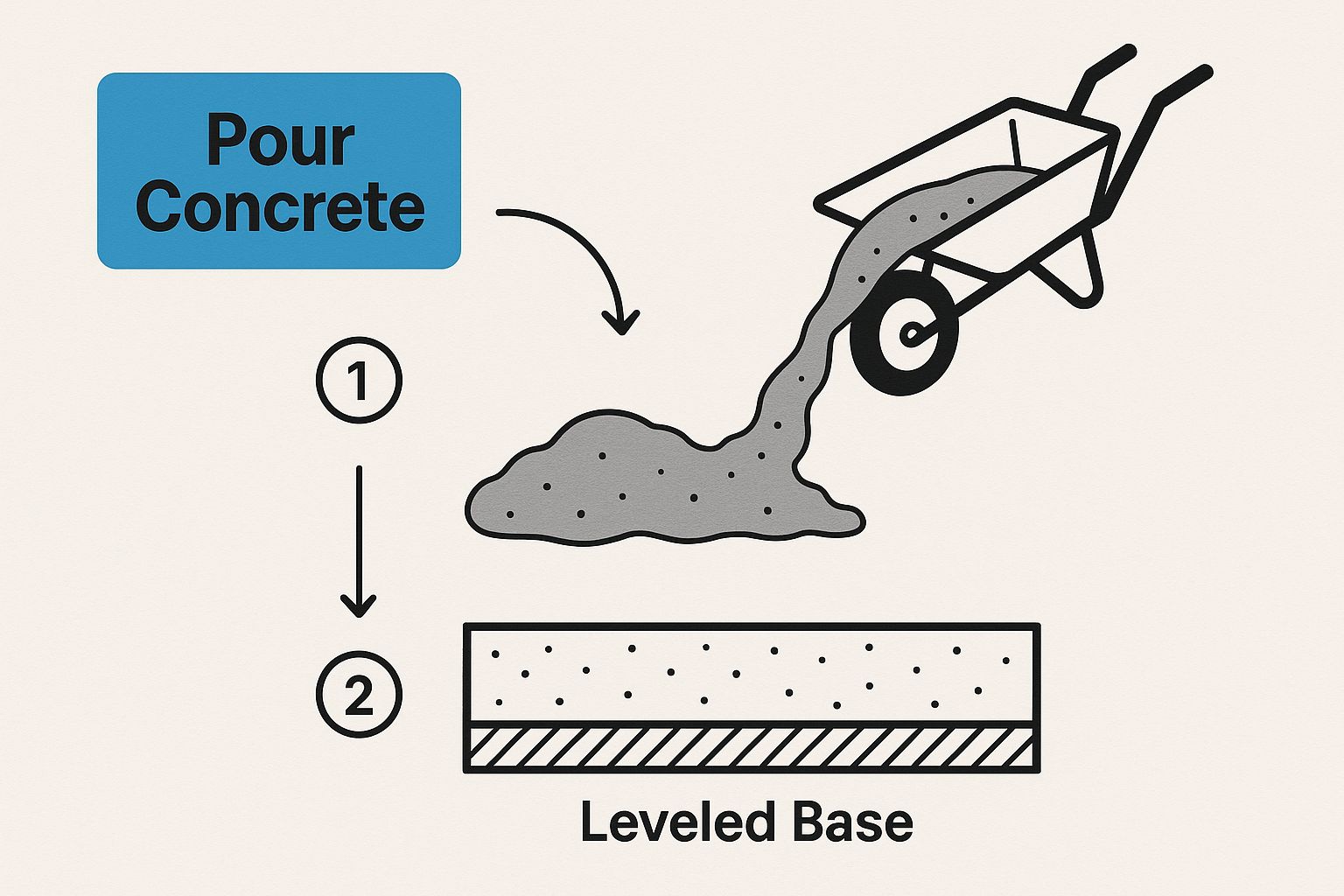

Here’s a visual look at this critical stage.

This image shows the moment of truth—pouring the freshly mixed concrete into the prepared formwork.

A tried-and-tested recipe for a strong foundation is a classic 1:2:3 mix:

• 1 part cement
• 2 parts sharp sand
• 3 parts aggregate (gravel)

Whether you’re using a hired cement mixer or going old-school with a wheelbarrow and shovel, always combine the dry ingredients first. Mix them thoroughly until you have a consistent, uniform grey colour.

Only then should you start gradually adding water, a little at a time. The perfect consistency is like a thick porridge. It should hold its shape if you make a peak, but still be wet enough to pour and spread without a fight.

To take the guesswork out of it, a handy concrete mixing ratio calculator can help you nail the exact quantities for your project. This is a great way to make sure you mix just the right amount without falling short or wasting materials.

Getting the Concrete Poured and Finished

With your formwork braced and the concrete ready to go, it’s time for the main event. The trick here is to work quickly but deliberately – concrete waits for no one and will start to set faster than you might expect.

Don’t just tip the whole wheelbarrow out in one go. It’s much better to start in one corner and pour your way across the base, spreading it as you go.

The aim is to work the wet concrete into every last corner of your formwork. A shovel or a garden rake is perfect for this, just push the mix right into the corners to make sure you don’t leave any air pockets, which can become weak points down the line. It’s actually a good idea to slightly overfill the formwork at this stage, as you’ll be levelling it off in a moment.

On a bigger job, having a friend to help you spread the concrete while you pour is a massive help. And if you’re mixing on-site, a decent mixer is essential to keep things moving. You can find options for cement mixer hire that will save your back and give you a much more consistent mix.

Tamping Down and Screeding Off

Once the formwork is full, the first job is to compact the concrete. We call this tamping, and it’s a crucial step. It forces out any trapped air and helps all the stones (the aggregate) settle properly, which is what gives the slab its strength.

Just get a solid piece of timber that’s long enough to sit across the formwork. Start at one end and begin firmly tamping it down across the entire surface. You’ll see little air bubbles and water rise to the top – that’s a good sign! It means you’re doing it right. Keep going until the whole base feels solid.

Now, for that perfectly flat surface. This part is called screeding.

1. Find a straight edge: You need a long, straight piece of timber (your screed board) that’s long enough to rest on the formwork on both sides.
2. Start at one end: Lay the board across the formwork.
3. Use a sawing motion: As you pull the board towards you, move it from side to side in a sawing motion.
4. Level it out: This action slices off the high spots and drags the excess concrete with it, neatly filling in any low spots as you move along.

You might need to do a pass or two to get it just right. Keep at it until you’ve got a uniformly flat surface from one end to the other.

Think of your formwork as the ultimate guide rail. As long as you keep that screed board resting flat on both sides, your finished concrete base will be perfectly level with the frame you built.

Getting That Final Smooth Finish

After screeding, your base is flat, but it’s probably still a bit rough. For that classic, smooth concrete look, you’ll need a tool called a float.

Timing is everything here. You have to wait for the concrete to start going off a bit. If you jump on it while it’s still soaking wet, you’ll just make a soupy mess.

A good rule of thumb is to wait until the shiny surface water (we call it ‘bleed water’) has disappeared. The concrete should be firm enough that when you place the float on it, it doesn’t sink in.

• For a really smooth surface: A steel float (or trowel) is what you need. Use big, sweeping motions across the surface. A great tip is to keep the leading edge of the float tilted up ever so slightly – this stops it from digging into the concrete.
• For a non-slip texture: If you’d prefer a bit more grip, a wooden or plastic float is a better choice. This is often a good idea for a shed base, especially if it’s likely to get wet.

Be gentle. You’re not trying to re-level it, just smooth out the rough texture left behind from screeding. Once you’re happy with the finish, the hard graft is officially over. Now it’s just a case of letting your new shed base cure.

Budgeting and Calculating Your Material Costs

Any good DIY project starts with a solid plan, and that includes figuring out the costs. It’s not just about building something that will last; it’s about getting to the finish line without any nasty financial shocks. Before you even think about digging, let’s get a handle on what this shed base is actually going to cost.

The biggest ticket item on your shopping list will, of course, be the concrete. Whether you’re getting it delivered ready-mixed or you plan on mixing it yourself, you first need to know exactly how much you’re going to need.

Calculating Your Concrete Volume

Figuring out your concrete volume is simple maths. You just need to multiply the length, width, and depth of your base. The key is to make sure all your measurements are in metres before you start.

Let’s run through a quick example. Say you’re planning a base that’s 3m long, 2m wide, and 100mm (or 0.1m) deep:

3m (Length) x 2m (Width) x 0.1m (Depth) = 0.6 cubic metres (m³)

This number is your golden ticket. It tells you exactly how much concrete to order or how many bags of cement, sand, and aggregate to throw in the trolley.

Getting this calculation right is non-negotiable. Order too little, and you’ll be making a panicked dash to the builder’s merchant mid-pour. Order too much, and you’re literally washing money down the drain. Always measure twice and calculate once.

Estimating Your Total Project Cost

While concrete is the main expense, it’s far from the only one. A proper budget needs to account for everything from the hardcore for the sub-base to the timber for the formwork. In the UK, the cost for a complete shed base project can swing wildly depending on its size. For a standard 8×6 foot shed, you might be looking at a total spend of anywhere between £300 and £1200.

To help you get a clearer picture, here’s a rough breakdown of what a typical 8×6 foot shed base might cost in materials.

Estimated Material Costs for a Standard 8×6 Foot Shed Base

Remember, these are just estimates for the materials themselves. You’ll also need to factor in other potential costs.

Here’s a quick checklist of the other things you’ll likely need to budget for:

• Sub-Base: MOT Type 1 hardcore is the go-to. You’ll usually buy it by the tonne or in large “bulk bags.”
• Formwork: You’ll need timber planks—gravel boards are perfect for this—and some sturdy wooden pegs to hold them in place.
• Reinforcement: If you’re adding steel mesh for extra strength (which is always a good idea), that’s another line item for your budget.
• Tool Hire: Unless you’ve got one sitting in your garage, you will almost certainly need to hire a compactor plate (often called a wacker plate) to get your sub-base properly flattened.
• Delivery: Getting a tonne of hardcore or bags of cement to your house isn’t always easy. Arranging a good construction material delivery service can save you a lot of time and a bad back.

By jotting down each item and getting a few prices, you can build a really accurate picture of the total cost. This way, you can be confident your project will stay on track and, more importantly, on budget.

Got Questions About Your Shed Base? We’ve Got Answers

Even the most carefully planned project can throw a few curveballs your way. When you’re laying a concrete shed base, getting those small details right is what makes all the difference. Here are the answers to some of the questions we hear all the time.

How Long Before I Can Build on the Concrete?

This is a big one, and the simple answer is: you need to be patient. While your new concrete slab might feel rock solid to the touch within 24-48 hours, it’s still working its magic beneath the surface. Don’t be tempted to jump the gun and start building.

For your average garden shed, a good rule of thumb is to wait at least 7 days. By this point, the concrete has reached about 70% of its final strength, which is plenty to start assembling your shed without any issues. If you’re building something much larger or heavier, giving it 14 or even the full 28 days is the professional standard.

Rushing this final stage is a classic mistake. Properly cured concrete is the secret to a foundation that won’t crack under pressure. Give it the time it needs to harden properly – you’ll thank yourself later.

Do I Really Need Steel Reinforcement?

Great question, and the answer isn’t always a simple yes or no. It really depends on the size of your shed and the quality of your ground.

If you’re just putting up a small 6×4 foot shed on solid, stable ground, a solid 100mm slab over a well-compacted sub-base will usually do the trick. You can often get away without adding a steel mesh.

However, the moment you step up to sheds larger than 8×6 feet, or if you know your garden has soft soil or clay that shifts, then reinforcement becomes a no-brainer.

• It adds tensile strength: Concrete is brilliant at handling compression (being squashed) but weak when it comes to tension (being pulled or bent). Steel mesh picks up the slack and stops it from cracking.
• It prevents cracking: Reinforcement helps spread the load of your shed evenly and fights back against ground movement from things like frost heave in winter.
• It’s cheap insurance: For a relatively small extra cost, you’re adding a massive amount of structural integrity and peace of mind to your project.

Hand Mixing or Using a cement mixer?

Honestly, this one just comes down to the sheer scale of the job. You could probably get away with hand-mixing the concrete in a wheelbarrow for a very small base, like for a log store or a couple of wheelie bins. But be warned: it’s incredibly hard work, and getting a consistent mix every time is a real challenge.

For any standard-sized shed base, hiring an electric cement mixer for the day is the only sensible choice. A mixer does the hard work for you, ensuring the cement, sand, and aggregate are perfectly combined every single time. This gives you a much stronger, more reliable slab and saves your back, freeing you up to focus on getting the pour and finish just right.
